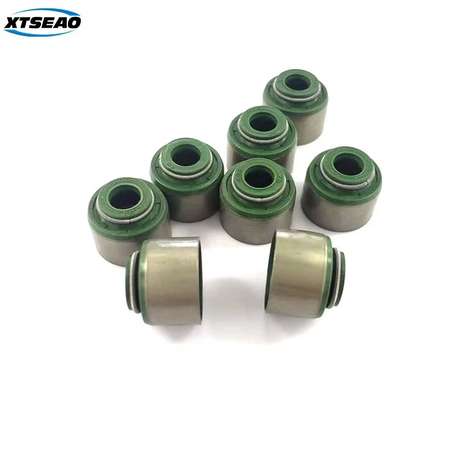

In the sophisticated operating system of an automotive engine, the valve stem seal (also known as a valve guide seal) is a tiny yet critically important component. XTSEAO’s 6.6127.5/12 valve stem seal, with its precise dimensional design and reliable sealing performance, provides long-lasting protection for the engine’s valve train system.
This valve stem seal is sized at 6.6 × 12 × 7.5/12 mm, with each parameter defined as follows:
Inner Diameter: 6.6 mm: Designed to fit valve stems with a diameter of 6.6 mm, creating an interference fit that allows the sealing lip to precisely control oil flow. This forms an optimal lubricating oil film, ensuring lubrication during the reciprocating motion of the valve stem while preventing excessive oil from seeping into the combustion chamber.
Outer Diameter: 12 mm: Matches the installation dimensions of the valve guide to achieve static sealing, preventing the seal from shifting or dislodging during high-speed engine operation.
Height: 7.5/12 mm: 7.5 mm refers to the main body height of the seal, while 12 mm is the total height including the installed metal skeleton. This segmented height design balances installation space compatibility and structural stability, adapting to various installation conditions in different engine cylinder heads.
As the "precision gatekeeper" of the engine valve train, this valve stem seal performs two key tasks:
Precision Oil Flow Control: Using the preload force of the lip spring, it forms an extremely thin, uniform oil film on the valve stem surface. This lubricates the high-speed reciprocating motion between the valve stem and guide while limiting the amount of oil entering the combustion chamber to just a few milligrams, preventing abnormal oil consumption and spark plug carbon buildup.
Bidirectional Sealing Protection: It prevents high-temperature, high-pressure exhaust gases from the combustion chamber from backflowing into the valve guide and crankcase, while also stopping oil from the crankcase from leaking into the combustion chamber through the valve stem clearance. This maintains the independent stability of the engine’s lubrication and combustion systems.
Long-term Operating Condition Resistance: Constructed from temperature and oil-resistant fluororubber (FKM) or high-performance hydrogenated nitrile rubber (HNBR), it withstands long-term exposure to engine temperature fluctuations of -40°C to 200°C, chemical corrosion from engine oil and gasoline, and continuous wear from the reciprocating motion of the valve stem.
Spring-loaded Primary Sealing Lip: The seal lip incorporates a stainless steel coil spring to maintain consistent clamping force on the valve stem. Even with minor eccentricity or thermal expansion/contraction of the valve stem, stable sealing is maintained to prevent early leakage.
Metal Skeleton Reinforced Structure: An embedded rigid metal skeleton enhances overall structural strength, preventing deformation during installation and operation. It also optimizes the fit with the valve guide, ensuring the seal remains securely in place without loosening or shifting after installation.
Multi-lip Composite Sealing Design: In addition to the primary oil-control lip, some versions include an auxiliary dust lip to block contaminants and carbon deposits from the valve guide, protecting the sealing lip area and extending the service life of the seal.
Anti-corrosion Surface Treatment: The metal skeleton is treated with anti-rust and anti-corrosion coatings to resist the corrosive effects of moisture and oil in the engine bay, preventing seal failure due to skeleton rust.
The 6.6×12×7.5/12 valve stem seal is widely compatible with multiple gasoline and diesel engines featuring 6.6mm valve stems, including passenger cars, light commercial vehicles, and some motorcycle engines. Its key advantages include:
Reduced Oil Consumption: Precise lip control significantly reduces oil blow-by, minimizing engine oil consumption and blue exhaust smoke, lowering emissions and extending the service life of the three-way catalytic converter.
High Operating Stability: Maintains consistent sealing performance even under high engine speeds and loads, preventing power loss, rough idling, and other issues caused by seal failure.
Strong Installation Compatibility: Standard dimensions allow for direct replacement of original equipment seals without modification, fitting most valve guide installation requirements and reducing maintenance and replacement costs.
Long Durability: High-quality materials and precision manufacturing processes greatly extend the service life of the seal, reducing the likelihood of secondary engine teardown and repairs.
Pre-installation Preparation: Before replacing the seal, clean carbon deposits and burrs from the valve stem and guide to avoid scratching the seal lip. Lubricate the valve stem and seal lip with clean engine oil to facilitate installation.
Use Specialized Installation Tools: It is recommended to use a dedicated valve stem seal installation tool to apply even pressure when pressing the seal into the valve guide. Avoid striking or installing at an angle, which can deform the seal or damage the lip.
Regular Inspections: If the engine exhibits abnormal oil consumption, blue exhaust smoke, or severe spark plug carbon buildup, promptly check the sealing condition of the valve stem seals and replace them if necessary to prevent further damage.
XTSEAO’s 6.6×12×7.5/12 valve stem seal offers a long-lasting sealing solution for engine valve trains through precise dimensions, reliable materials, and mature structural design. It is an essential component for ensuring stable engine operation and extending service life.
